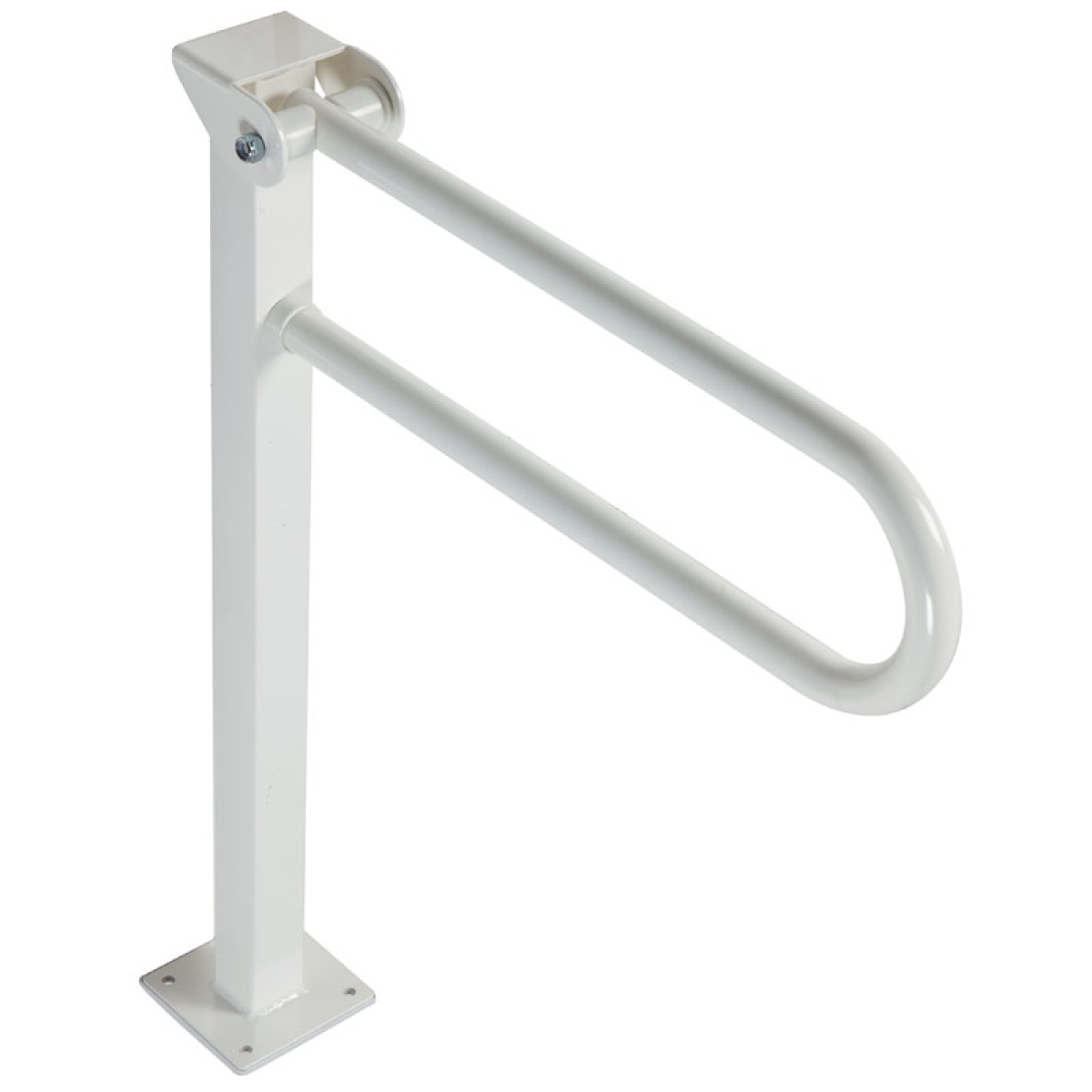

Folding grab bar, zinc-plated steel pipe, coated with 3 mm. thick anti-microbial vinyl. Mounting plate installs into floor. Available in 24" and 31" length grab bars.
• Stands 33” above the floor, open space 5” between bars, available in either 24" or 31" length.
• 24” has a 330-pound load capacity
• 31” has a 265-pound load capacity
• Anti-microbial protection in vinyl coating. Easy to clean.
• Great choice if no wall space available.
• Mounting plate goes into floor, measures 5 5/16” square
| Folding Grab Bar On Floor Mounted Pedestal | |||
|---|---|---|---|
| Code | G01JCS53 | ||

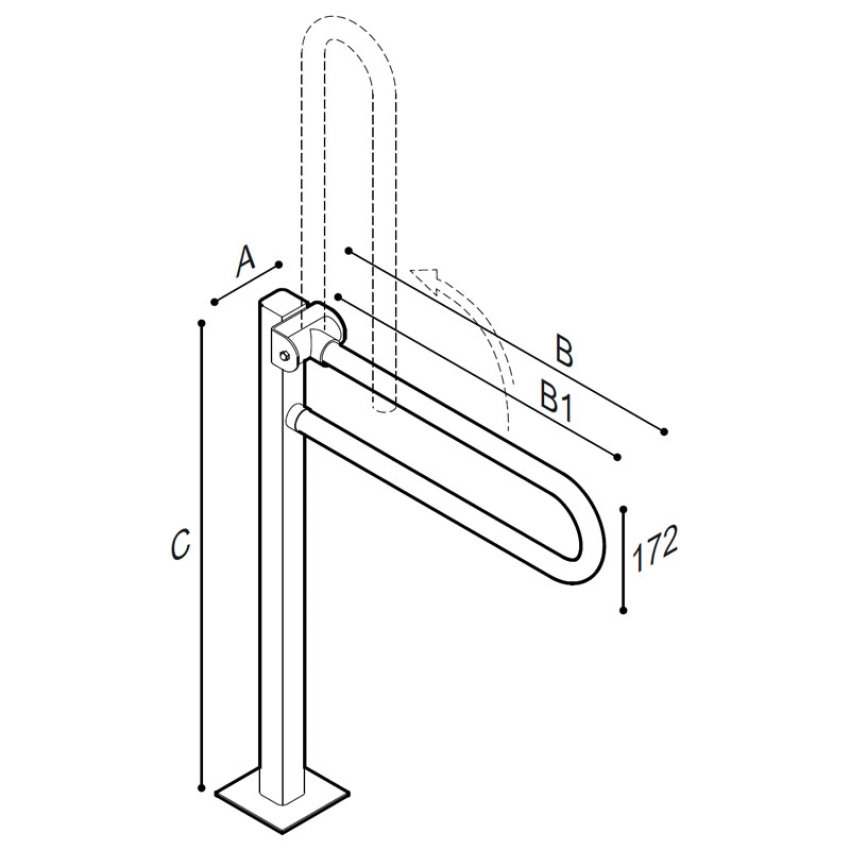

| Dimensions AxBxC (inch.) | 5-5/16x35-1/8x33-1/8 | ||
| Inter-axis dimensions B1 (inch.) | 31-1/2 | ||
| Net Weight (lbs) | 12.79 | ||
| Load capacity (lbs.) | vertical | 265 | |
| horizontal | 88 | ||
